MOFI Accuphase_C-3850 Core Circuit Pre-Amplifie DIY KIT Project

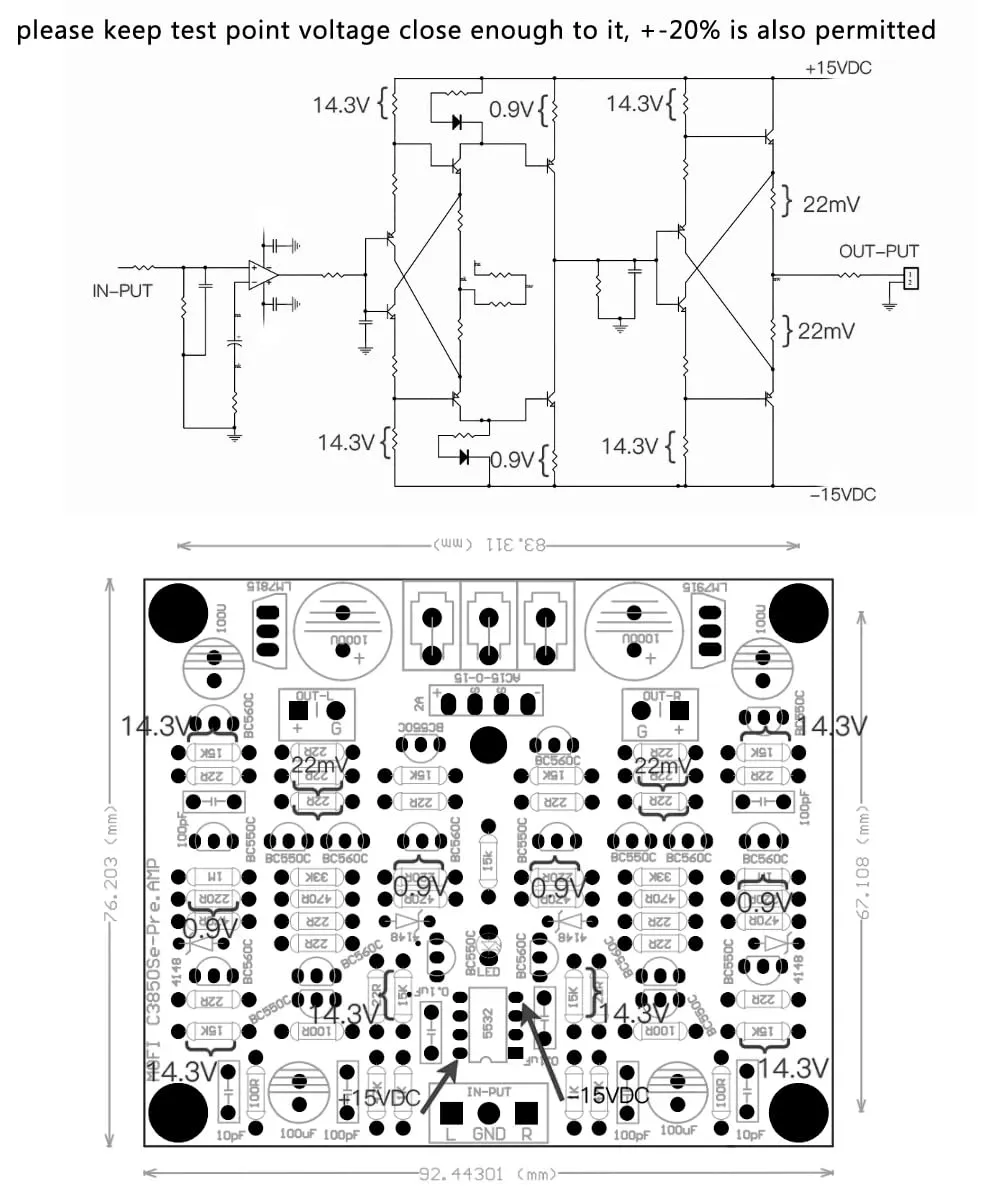

-Summary MOFI-C-3850 Core Circuit Pre-Amplifier, It is based on the core circuit of the Accuphase_C-3850 Pre-Amplifier. -Tech highlights Class-a Pre-Amplifier. Voltage and current dual feedback circuit. PCB is small and flexible, more suitable for all kinds of chassis installation. all-in-one design, single-point grounding, ground resistance is close to the 0.02 ohm resistance value, low noisedesign. More cost-effective sound modification plan. Product configuration DIY kit: Contains the PCB and the components needed on the PCB, but does not include the power transformer . Finished board: Based on the well-tested board on the standard version kit, we verified all key points' voltage, and used the signal generator and oscilloscope for analog waveform double verification. We will not use this board for listening test. All finished pcbs are all carefully hand-soldered and fully tests, so the price is higher and less cost performance. Price-sensitive consumers but with have DIY ability are recommended to choose the kit. Schematic & key point of debugging

PCB comes with component parameters for easy installation. We only refer the schematic of the amplification part of the circuit. If you need full circuit parameter, please read the component value with the PCB by yourself; we do not provide additionally. please keep test point voltage close enough to it, -20% is also permitted

• Date First Available ‏ : ‎ July 29, 2024
• Manufacturer ‏ : ‎ Jolooyo
• Country of Origin ‏ : ‎ China
