- UL listed AL9CU dual rated set screw terminals and CSA certified
- Ensure the transformer feeders and taps are terminated properly
- Plated steel cap screws and hex nuts with captive conical washers or individual Belleville washers
- Terminal to bus connections are made using proper hardware resulting in true torque to pressure performance
- Compensates for dissimilar metal expansion and contraction

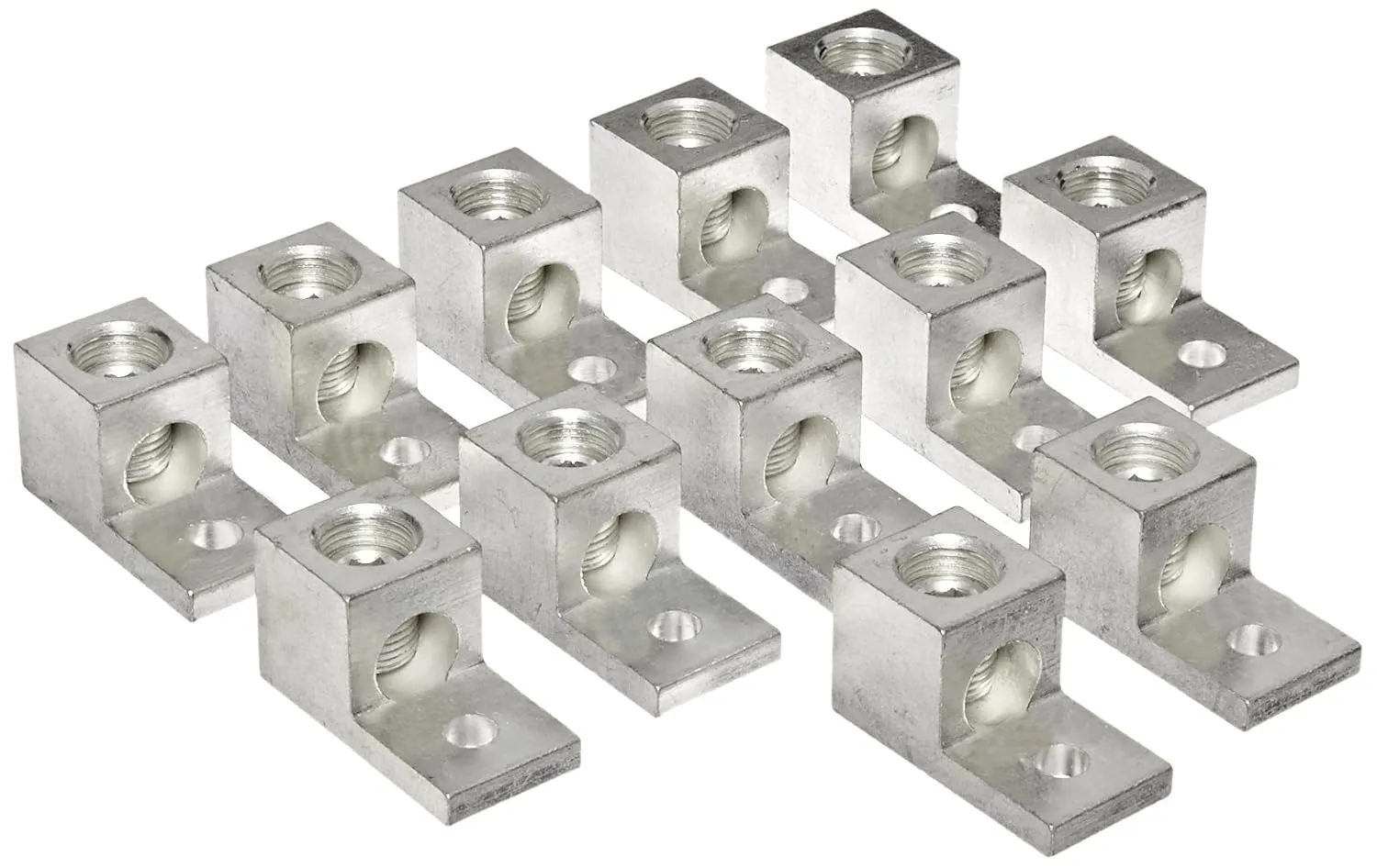

These dual-rated lugs are constructed from high strength aluminum alloy and electro tin- plated to provide low contact resistance. Lugs and mounting hardware packaged together in these kits. Hardware packed in plastic bag. No lost hardware prior to installation. Larger 800 kcmil lugs in KIT3 and KIT4. Accommodates common 750 kcmil tap conductors in larger transformers. Kit includes 12 KA29U terminals, 8 bolt 1/4-20 x 3/4 HH size, 8 bolt 1/4-20 x 2 HH size, 16 nut 1/4 x 20 HN size and washers. #6 - 250 kcmil Aluminum or Copper wire range. 50 - 75 1Ø and 75 - 112.5 3Ø transformer KVA rating.
- Package Dimensions : 6.4 x 3.8 x 2.7 inches; 1.85 Pounds
- Date First Available : November 7, 2014
- Manufacturer : Burndy
- Country of Origin : Mexico
